View detailsVacuum Coolant Filter Manufacturers in India
PLC-controlled vacuum filtration for centralized coolant systems. Uninterrupted supply during media indexing, 300 to 30,000 LPM.
Centralized coolant systems High-volume machining plants Transfer lines Multi-machine installations
Overview

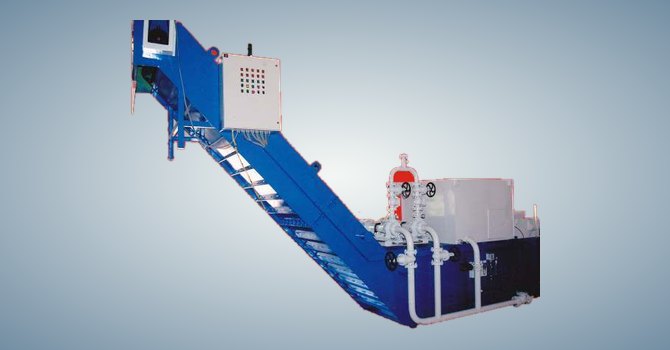

Unique vacuum filters are of robust construction, built with the latest technology in filtration. The media in roll form is supported by a conveyor mechanism throughout the bottom. A pump sucks the coolant from the vacuum chamber and the liquid passes through the media, with all contaminants retained on top of it.
As the media becomes choked with accumulated contaminants, a vacuum switch gives the signal and fresh media is indexed for a prefixed time. Supply to the machine is continuous and unaffected, because coolant is drawn from the regenerating tank during indexing.
The complete system is automatic and controlled by a PLC. Flow rates range from 300 LPM to 30,000 LPM. Vacuum filters are used for centralized coolant systems, where they are very economical and highly reliable.
Key Features
- Vacuum-assisted filtration for high throughput
- Media indexed automatically on vacuum switch signal
- Uninterrupted coolant supply during indexing via regenerating tank
- Fully automatic PLC control
- Built for centralized coolant systems
| Flow rate | 300 LPM - 30,000 LPM |
|---|---|
| Control | Fully automatic, PLC |
| Media indexing | Vacuum switch triggered, prefixed time |
| Supply continuity | Maintained from regenerating tank during indexing |
| Best suited to | Centralized coolant systems |
