View detailsPowered Roller Conveyor with Drum Filling System
Heavy-duty powered rollers with CNC-machined bearing fittings and an automatic drum filling station - a complete process line.
Drum filling lines Weighing & filling Assembly lines Painting lines Labelling & packing
Overview
Powered roller conveyors move different types of components quickly and effortlessly, with minimal manual involvement. Rollers are machined, fitted with sealed ball bearings and driven positively through duplex sprockets and chain drive.
Geared motors with fixed or variable speed match the line to your production requirement. The structure is fabricated in standard ISMC with adjustable legs; rollers are standard ERW pipe in MS galvanised or SS-304, with bearing fittings precisely machined on CNC for smooth running.

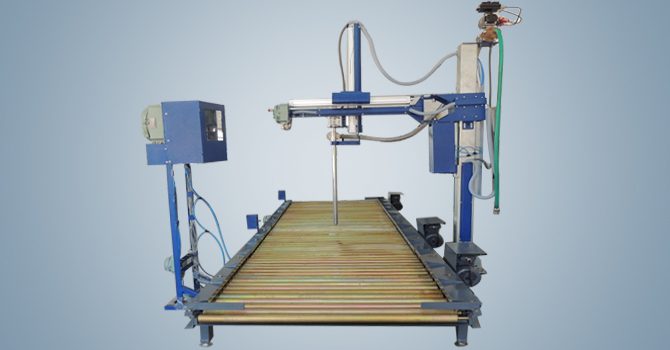

The optimised system shown combines a heavy-duty, variable-speed powered roller conveyor with an automatic drum filling station. Similar custom-designed lines are possible for weighing and filling, assembly, painting, labelling, packing and other processes.
Key Features
- Sealed ball bearings with CNC-machined fittings
- Duplex sprockets + chain drive for positive traction
- Geared motors - fixed or variable speed
- Auto drum filling station integration
- Straight or curved, widths 100-2000 mm
- Custom process lines: weighing, filling, painting, labelling, packing
| Width range | 100 mm - 2000 mm |
|---|---|
| Drive | Geared motor, duplex sprockets & chain, fixed / variable speed |
| Rollers | ERW pipe, MS galvanised or SS-304, sealed ball bearings |
| Machining | Bearing fittings CNC-machined for smooth running |
| Integration | Auto drum filling · weighing & filling · labelling · packing |
