View detailsMagnetic Coolant Filter Manufacturers in India
Continuous separation of ferrous contamination from coolants and oils. 30 to 3000 LPM, with rare earth options 4-5 times more powerful.
Grinding machines Machining centres Coolant tanks Ferrous swarf separation Pre-filtration stage
Overview

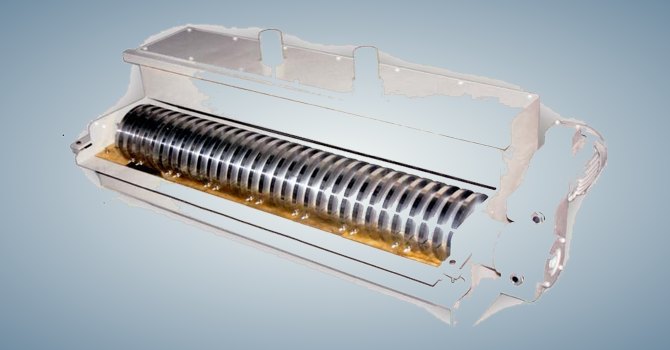

Magnetic filters are designed for effective separation of ferrous contamination from coolants and oils. The body is of robust construction with a powerful magnetic drum, continuously rotated by a geared motor at slow speed.
Ferrous particles are attracted onto the drum and scraped off. An oil-resistant rubber roller squeezes out the collected dust so that coolant oil is not carried away with the sludge - wastage is avoided.
Special filters are also available with rare earth magnetic construction, which are 4 to 5 times more powerful than conventional magnetic filters. Units are manufactured in capacities from 30 LPM to 3000 LPM.
Key Features
- Effective separation of ferrous contamination from coolants and oils
- Powerful magnetic drum, continuously rotated by geared motor at slow speed
- Oil-resistant rubber roller squeezes out dust - no coolant wastage
- Rare earth magnetic construction 4-5 times more powerful than conventional
- Robust body construction for continuous duty
| Capacity range | 30 LPM - 3000 LPM |
|---|---|
| Separation | Ferrous contamination from coolants and oils |
| Drum drive | Geared motor, continuous slow-speed rotation |
| Sludge removal | Scraper + oil-resistant rubber squeeze roller |
| Magnet options | Conventional or rare earth (4-5x more powerful) |
