Conveyor Spares and Replacement Parts
We can provide all the spares required for various types of conveyors - including equipment not built by us. Send us the make and specification, or a drawing.

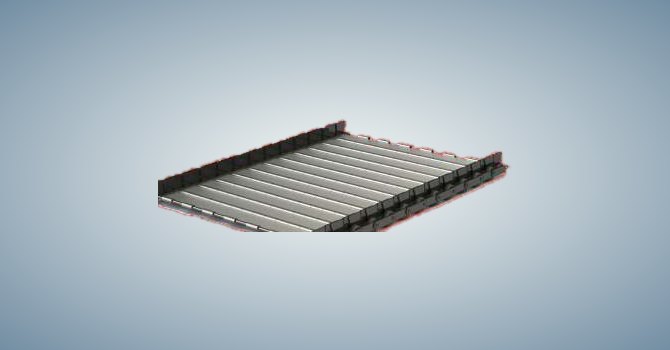

Hinged Metal Belt & Chain
Hinged metal belts or slats and conveyor chain in pitches of 1.5", 2.5", 4" and 6", and to customer requirements. Scraper conveyor chain and assembly, shafts, sprockets, safety clutches, screws and coils can be supplied as per drawing.
| Chain pitches | 1.5" · 2.5" · 4" · 6" |
|---|---|
| Also supplied | Scraper chain & assembly · Shafts · Sprockets · Safety clutches · Screws & coils |
| Custom | Manufactured to your drawing and specification |

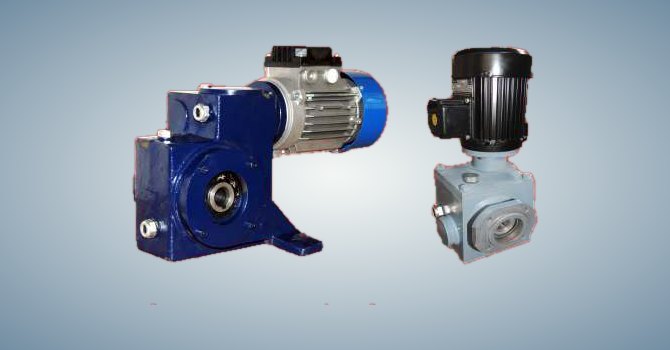

Geared Motors
Double worm reduction, hollow shaft mounting geared motors suitable for chip conveyors, filtration systems, oil skimmers and screw conveyors. They match most reputed Indian brands and imported equipment. Spare worm and worm wheel are also available.
| End RPM | 2.5 · 5 · 7 · 10 · 15 RPM |
|---|---|
| Input power | 0.18 KW · 0.37 KW · 0.75 KW |
| Type | Double worm reduction, hollow shaft mounting |
| Compatibility | Most reputed Indian brands and imported equipment |

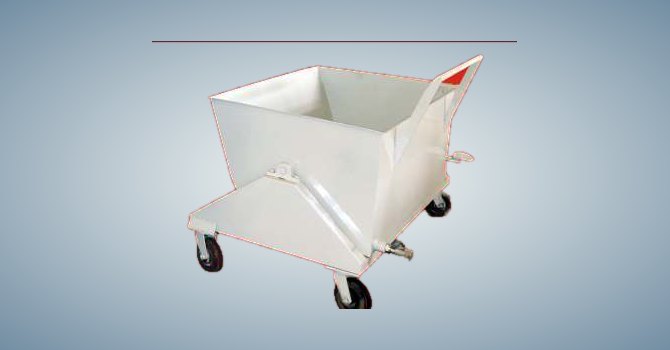

Chip Bin / Chip Trolley
Tilting and fixed type chip trolleys - essential equipment for storage and handling of chips produced in machining, and a standard part of chip conveyor installations. Fabricated in extra thick sheet metal with reinforcement and mounted on a rigid frame.
| Types | Tilting and fixed |
|---|---|
| Wheels | 2 fixed + 2 swivel |
| Construction | Extra thick reinforced sheet metal on rigid frame; extra heavy duty available |
| Features | Perforated bottom for chip draining, valve, safety lock for foot-operated lever |
| Sizes | Standard sizes and custom made |
Need a part number or a sample matched?
Send us the make, size or a drawing - we will identify and quote it.
