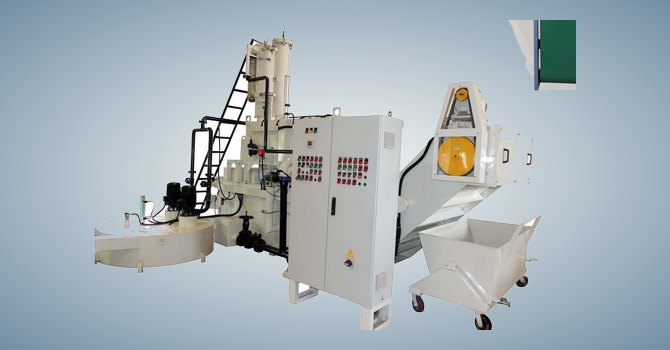

View detailsCentralized Chip and Coolant Systems in India
Underground conveyors that free your floor area and eliminate individual coolant tanks - custom engineered for your shop layout.
Modern machine shops Multi-machine plants Transfer lines Turnkey coolant management
Overview
In modern machine shops it is becoming extremely popular and essential to install centralized coolant and chip handling systems, which eliminate individual conveyors and coolant tanks and reduce both space and maintenance substantially.
The conveyors are installed under the ground, leaving the floor area free for movement and keeping the shop free from chip and coolant spillage. The systems also prove economical because maintenance and the number of pumps required are reduced.
Every system is custom designed to handle the specific chip type, quantity and flow rates. A combination of scraper, slat and rotary drum conveyors with magnetic filters or bag filters and a chip centrifuge makes these systems very effective and reliable.
Key Features
- Eliminates individual conveyors and coolant tanks
- Underground conveyors keep floor area free and clean
- Substantially reduced space and maintenance
- Fewer pumps - lower running cost
- Custom designed for chip type, quantity and flow rate
- Integrates scraper, slat and rotary drum conveyors with filtration and centrifuge
| System type | Fully custom designed, turnkey |
|---|---|
| Conveyors | Scraper · Slat · Rotary drum, installed below floor level |
| Filtration | Magnetic filters or bag filters |
| Chip processing | Integrated chip centrifuge |
| Designed around | Chip type, quantity and coolant flow rate |
