View detailsHydro Cyclone Filter Manufacturers in India
No moving parts, no consumables. Centrifugal separation of ferrous and non-ferrous particles, 50 to 500 LPM in single or multiple units.
Coolant cleaning Grinding sludge Low-maintenance installations Secondary filtration
Overview

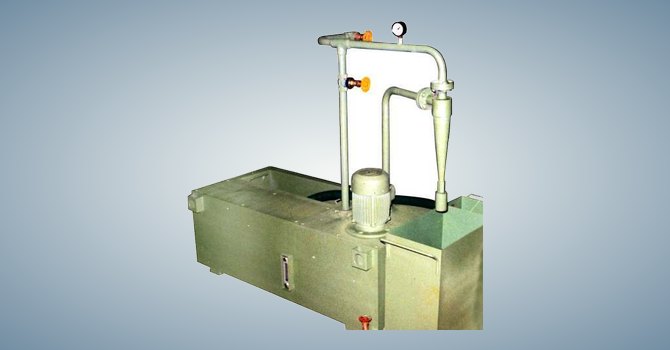

Hydro cyclone filters are a simple and economic means of filtration for coolants and oils, separating particles of both ferrous and non-ferrous nature.
Because there are no moving parts, the unit requires no consumables at all. Separation is achieved by centrifugal force created by a pump and vortex. The contaminants are discharged through the orifice and collected in a bin, and the filtered coolant is supplied back to the machine.
Flow rates vary from 50 LPM to 500 LPM, available with single or multiple cyclone units.
Key Features
- No moving parts - minimal maintenance
- No consumables - zero running media cost
- Separates both ferrous and non-ferrous particles
- Centrifugal separation by pump and vortex
- Contaminants discharged through orifice into a collection bin
- Single or multiple cyclone configurations
| Flow rate | 50 LPM - 500 LPM |
|---|---|
| Principle | Centrifugal separation - pump and vortex |
| Moving parts | None |
| Consumables | None |
| Configurations | Single or multiple units |
